Lisky Flat Knitting Machine
- County of Origin: Taiwan
- Attachment: Japan & Germany
LY-787-T25C
| Specification & Parameters: | |
|---|---|
|
Needle gauge |
1.50 20 2.50 30 3.50 |
|
Knitting width |
52" 60" 60" 100" |
|
Knitting system |
Single head and double system |
|
Knitting function |
Needle fucking pick holes jacquard cable Ming narrowing dark narrowing and other regular pattems woven |
|
Racking |
Double racking |
|
Stitch density |
Control with stepping motor can be adjusted according to different fabrics, to achieve a variety of stitches and policy effect. |
|
Control system |
Screen display LED touch screen USB input memory up to 20 according to the production of call. Monitoring menu displays current knitting parameters and can be adjusted at any time when the machine is operating. Plate making and control system/software) easy to upgrade for free distribution. Multi language version according to customer needs to increase the required language. |
|
Protection system |
When the machine has any fault in the course of action will automatically alarm at the same time display alarm project. |
|
Power Supply |
Single phase 220V CMOS technology has the memory function at power-off moment. |
|
Option |
Takedown comb.dynamic degree,sub roller. |
LY-787-25C
| Specification & Parameters: | |
|---|---|
|
Needle gauge |
5G, 7G, 9G, 10G, 5/7G, 12G, 14G, 16G |
|
Knitting width |
52", 60" |
|
Knitting system |
Single head and double system |
|
Knitting function |
Needle fucking pick holes jacquard cable Ming narrowing dark narrowing and other regular pattems woven |
|
Racking |
Double racking (5G ~7G), Single racking (12G-16G] |
|
Stitch density |
Control with stepping motor can be adjusted according to different fabrics, to achieve a variety of stitches and policy effect. |
|
Control system |
Screen display LED touch screen USB input memory up to 20 according to the production of call. Monitoring menu displays current knitting parameters and can be adjusted at any time when the machine is operating. Plate making and control system/software) easy to upgrade for free distribution. Multi language version according to customer needs to increase the required language. |
|
Protection system |
When the machine has any fault in the course of action will automatically alarm at the same time display alarm project. |
|
Power Supply |
Single phase 220V CMOS technology has the memory function at power-off moment. |
|
Option |
Takedown comb.dynamic degree,sub roller. |

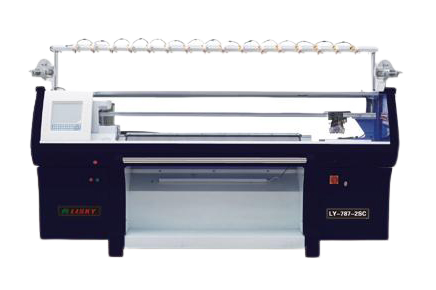

LY-787D-2SC
| Specification & Parameters: | |
|---|---|
|
Gauge |
1.5G-15G |
|
Roller |
Dual Motor |
|
System |
Double head single system |
|
Knitting function |
Needle fucking pick holes jacquard cable Ming narrowing dark narrowing and other regular pattems woven |
|
Racking |
Single racking |
- Double head single system.
- Flexibility in the use of split and combination of double head lengthening weaving width or knitting at the same time with double head Improving weaving efficiency.
- Meet customers needs for special requirements can also complete weaving requirements in single system.
LY-787-3SC
| Specification & Parameters: | |
|---|---|
|
Gauge |
5G, 7G, 5/7G, 9G, 10G, 12G, 14G, 15G |
|
Roller |
Dual Motor |
|
System |
Single head three system |
|
Racking |
Single racking |
- Single head three system
- Increasing one system in the base of double system,each system have woven,non-woven fucking and needle three-way technique
- Can weave all kinds of structural pattem jacquard pattem,and intarsia pattem garments, Voollar narrowing the sample
- Application of three system more fully meet the customers requirements for better and faster production, the production efficiency can be further improved

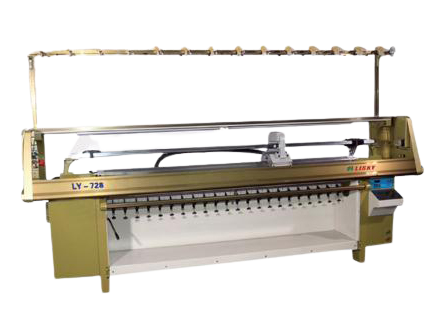

LY-728
| Specification & Parameters: | |
|---|---|
|
Needle gauge |
7G, 9G, 12G, 14G, 16G, 16G |
|
Needle Bed width |
40", 52", 72", 80", 96" |
|
Knitting width |
Weaving width can be adjusted according to the width of the cloth. |
|
Knitting Speed |
1.2meters/second, Stepless ine-tuning between high and low speed. |
|
Yam Feeder |
Two sides interchangeable feeder automatically six main color. |
|
Cam System |
Single Feeder, Tuck cam both in front and rear needle beds. Cam has high-butt and low-butt select functions, both controlled by stepping motor. |
|
Stitch density |
0-99 division stitch density fine-tuning with automatic debug function.controlled by computer program. |
|
Needle |
High but & Low butt, stitch. |
|
Racking |
Automatic debug and stop Function. |
|
Fabric take-down |
The roller is controlled automatically by the motor, it has 2-step speed settings controlled by computer program. |
|
Stop Motion |
Yarn break, yarn knot, aerial abnormal fabric drop, reverse rolling shock act, floating knit,needle break piece count motor overload stitch abnormal racking error,cam motor error Emergency Suspension. (the reason will be displayed on the screen, and the warning light will appear on the panel) |
|
Power |
AC 220V,50/60HZ,Single-phase,1/2HP motor/0.75KW Controlted by high-quality frequency inverter. |
|
Computer System |
Industrial Micro-computer control system tough-screen data access by contents of the
memory (it can store 30 files), electric batteries and circuits devices can extend the storage of resources for 3000 hours after blackout. The data can be input by PC or U disk(USB). It has the extensibility. |
